Robolink DP SW | 5 DOF | 790 mm | 2kg


Part No.: RBTX-IGUS-0167

Preconfigured 5-Axis Cobot for Precise and Flexible Automation

The robolink® DP is a 5-axis lightweight robot with integrated control cabinet. With a reach of 790 mm, a maximum payload of 3 kg, and ±1 mm positioning accuracy, it’s ideal for precise pick-and-place and handling tasks. NEMA23 XL stepper motors operate at 24/48 V and up to 4.2 A.

Controlled via igus® Robot Control (iRC), it supports standard protocols such as Modbus, TCP/IP, and ROS. Its open interfaces allow for easy integration into existing automation systems.

Typical applications include assembly, machine loading, lab automation, and inspection. Perfect for SMEs, integrators, and educational institutions seeking a ready-to-use, cost-effective robotics solution.

Waktu pengiriman biasa: 3 minggu

Max Reach
790
mm
DOF
5
Max Payload
2
kg
Max Speed
0,05
ms
Repeatability
1
mm

Highlight

https://a.storyblok.com/f/298593/0fe5697753/robolink-dp-5-sw-robot-arm-splash-water-highlight.png

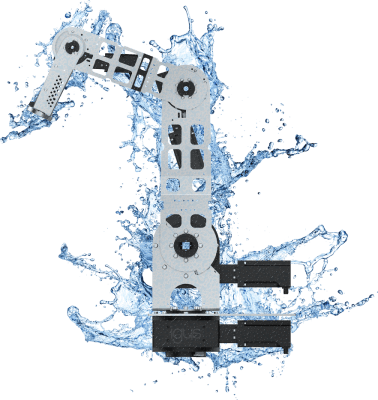

Splash-proof

  • Splash water resistance through for protection class IP 44

  • Stainless connecting elements

  • Motors with encoder with protection class IP 65

https://a.storyblok.com/f/298593/12b15ce6f5/lca_gen_irc-mockup-pc_de_1-removebg-preview__1_.png

Free Download

Download now and try it out in advance

Download the software now for free. This allows you to familiarize yourself with the user interface and functions even before you buy the components. With the Digital Twin you get an overview of the possibilities of your robot. (System requirements: Windows 10 PC, free USB 2.0 port, Ethernet port, 500 MB free storage)

Download now - It's free

https://a.storyblok.com/f/298593/065dc1611c/igus-robot-control-48v-low-cost-irc.png

Includes igus® Robot Control

Modular control and Software

This set enables you to control the robolink® robot arm. With the corresponding software, you can programme and move the robot via a graphical user interface.   Main features:

  • Modular, control system based on top-hat (DIN) rail, easy to extend

  • Smooth motion with 1/256 microstepping

  • Energy saving operation with adaptive current control: Trinamics StallGuard2 and CoolStep Technologies

  • Intuitive control and programming environment with interactive 3D user interface

  • Programming commands like Joint, Linear, If-Then-Else, DigitalOut, Loop etc.

  • Interface to remote computer via TCP/IP

  • ROS packages are available

  • Control cabinet

https://a.storyblok.com/f/298593/cf3a86a4e0/robosteuer_5m_cmyk__1_.png

Genggam opsional dengan layar sentuh

Pilih pengaturan yang tepat untuk Anda.

Anda dapat mengontrol robot dari PC Windows 10 atau dari perangkat genggam opsional dengan layar sentuh. Pada PC robot dapat diprogram melalui antarmuka pengguna grafis. Dengan perangkat genggam Anda dapat mengontrol robot dengan joystick dan memulai program melalui layar sentuh. Selain itu, Anda juga dapat menghubungkan gamepad ke PC Windows Anda untuk kontrol sebagai alternatif dari perangkat genggam. Dengan perangkat genggam ini, robot berjalan secara mandiri tanpa komputer setelah diprogram melalui PC Windows.
