Room Gantry | DLE-RG-0001 | Working space 500x500x100 mm
Varian: With Cabinet control system
Compact Room Gantry Robot for Precise Automation
The drylin® room gantry robot DLE-RG-0001 offers ±0.8 mm accuracy and a workspace of 500 × 500 × 100 mm. With a max payload of 5 kg, 0.5 m/s speed, and up to 20 picks/min, it’s ideal for compact and repeatable automation tasks.
Controlled via igus® Robot Control or Dryve D1 – supporting Modbus TCP/IP, CANopen, ROS, digital I/Os, and LabVIEW. The intuitive 3D interface enables easy programming and seamless integration into existing systems.
Recommended for pick & place, lab automation, inspection tasks, and light assembly. Perfect for research labs, SMEs, and industrial users focused on precision and efficiency.
Highlight
Sesuai dengan kebutuhan Anda

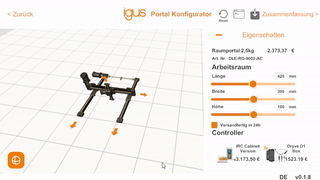

Konfigurator portal
Sesuaikan robot linear dengan kebutuhan Anda! Cukup masukkan dimensi yang Anda inginkan. Anda kemudian dapat mengunduh file CAD dan menerima ringkasan melalui email.
Free Download
Download now and try it out in advance

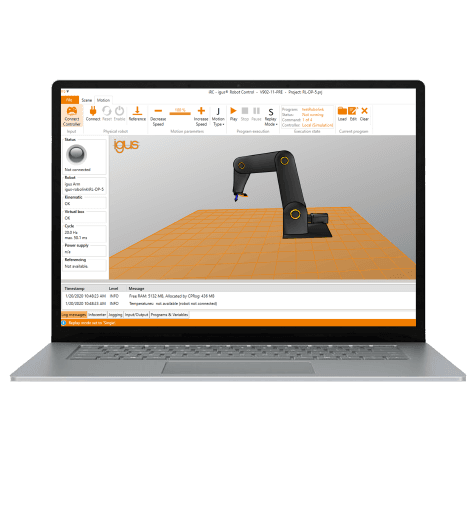

Download the software now for free. This allows you to familiarize yourself with the user interface and functions even before you buy the components. With the Digital Twin you get an overview of the possibilities of your robot. (System requirements: Windows 10 PC, free USB 2.0 port, Ethernet port, 500 MB free storage)

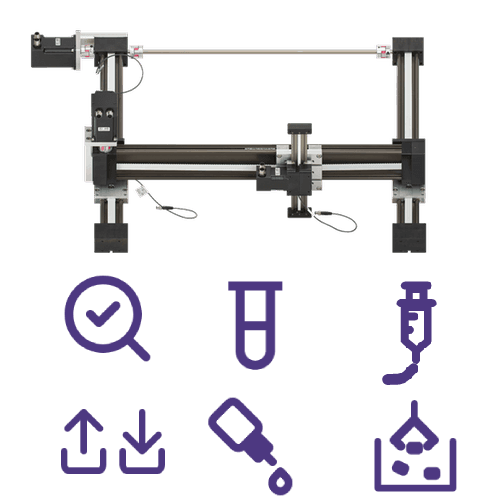

Typical application areas
Gantry robots are particularly suitable for pick & place applications in various areas. For example, in the laboratory, in manufacturing, for applications with adhesives or in vertical farming. They are compatible with various camera systems, grippers and accessories and can therefore also be used in bin-picking applications.

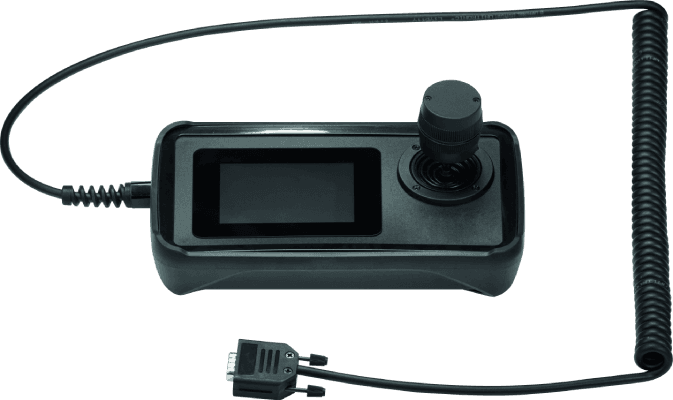

Genggam opsional dengan layar sentuh
Pilih pengaturan yang tepat untuk Anda.
Anda dapat mengontrol robot dari PC Windows 10 atau dari perangkat genggam opsional dengan layar sentuh. Pada PC robot dapat diprogram melalui antarmuka pengguna grafis. Dengan perangkat genggam Anda dapat mengontrol robot dengan joystick dan memulai program melalui layar sentuh. Selain itu, Anda juga dapat menghubungkan gamepad ke PC Windows Anda untuk kontrol sebagai alternatif dari perangkat genggam. Dengan perangkat genggam ini, robot berjalan secara mandiri tanpa komputer setelah diprogram melalui PC Windows.
Solusi berbiaya rendah yang dibangun dengan RBTX
Pesan videocall gratis dengan pakar kami
